ASRock Z87M EXTREME4 | 4x DDR3 | M-ATX | LGA 1150 | Laatste

---

Specificaties: Moederbord – Socket LGA1150 – Micro-ATX – Intel Z87 Chipset – 4 x DDR3 up to 32GB – Gigabit Ethernet – DVI-D – HDMI – VGA – eSata – USB3.0 –  SATA III – 6x SATA-600 – PCI-e 2.0 x1 – PCI-e 2.0 x4 – 2x PCI-e 3.0 x16- AMD Crossfire- Nvidia SLI/NVLink

Dit socket 1150 Micro-ATX moederbord is gecontroleerd en voorzien van de laatste BIOS versie.
De prijs is inclusief garantie, een BTW Factuur is ook mogelijk, de prijs is dan inclusief BTW.

Product: ASRock Z87M Extreme4
Categorie: Moederborden
Merk: ASRock
EAN: 4717677320930, 4997401150655
SKU: 90-MXGPK0-A0UAYZ, Z87M EXTREME4, Z87M-EXTREME4

Opmerking: dit is een refurbished moederbord dat is bijgewerkt met de nieuwste BIOS-versie, de garantieperiode van het product is 90 dagen.

pakketinhoud:
– Moederbord
– IO-Shield (blikken achterplaatje)
– Geen handleiding
– Geen driver-cd
– Geen kabels

A-Style : Home Cloud, Purity Sound™
Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
Premium Gold Capacitor Design, Digi Power, 8 Power Phase Design
Supports Dual Channel DDR3/DDR3L 2800+(OC)
2 PCIe 3.0 x16, 1 PCIe 2.0 x16, 1 PCIe 2.0 x1
Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™
Supports NVIDIA® Quad SLI™ and SLI™

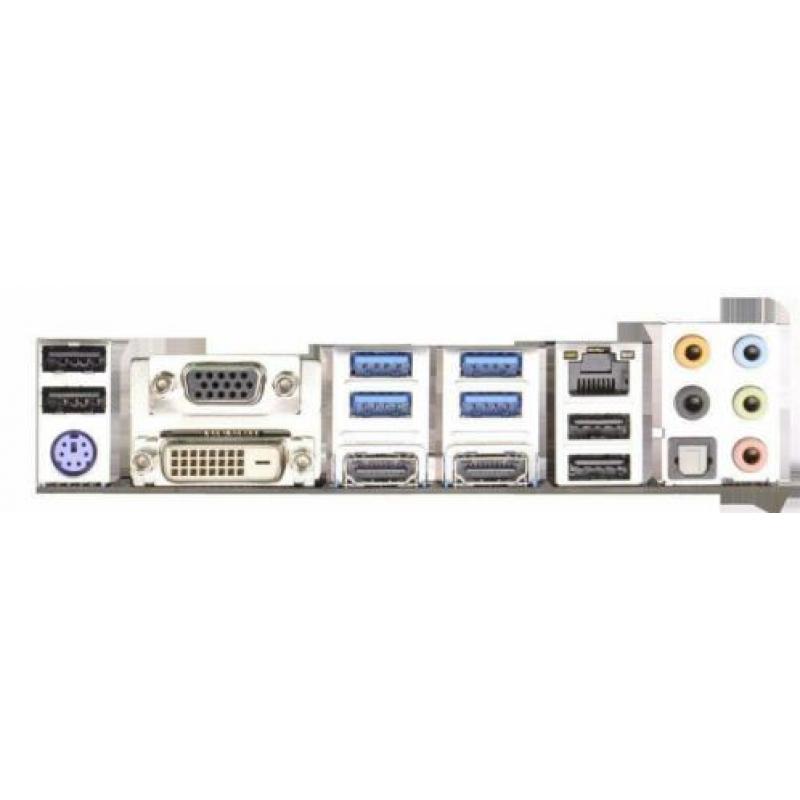

Graphics Output Options : DVI-D, D-Sub, HDMI
Intel® Gigabit LAN
7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
6 SATA3, 1 eSATA, 6 USB 3.1 Gen1, 8 USB 2.0
Supports A-Tuning, XFast 555, Easy Driver Installer, FAN-Tastic Tuning, USB Key
A-Style
– Home Cloud
– Purity Sound™

CPU
– Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
– Digi Power Design
– 8 Power Phase Design
– Supports Intel® Turbo Boost 2.0 Technology
– Supports Intel® K-Series unlocked CPU
– Supports ASRock BCLK Full-range Overclocking

Chipset
– Intel® Z87

Memory
– Dual Channel DDR3/DDR3L memory technology
– 4 x DDR3/DDR3L DIMM slots
– Supports DDR3/DDR3L 2800+(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 32GB*
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2


• Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 64Mb AMI UEFI Legal BIOS with Multilingual GUI support
– ACPI 1.1 Compliance Wake Up Events
– SMBIOS 2.3.1 Support
– CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment

Graphics
– Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4600
– Pixel Shader 5.0, DirectX 11.1
– Max. shared memory 512MB*
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports Triple Monitor
– Supports HDMI Technology with max. resolution up to 4K x 2K (4096×2304) 24Hz
– Supports DVI-D with max. resolution up to 1920×1200 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
– Supports HDCP funct...
